Name: Automatic Vegetables/Fresh Fruit Pillow Bag Packing Machinery
Brand: GUANGDONG TOUPACK INTELLIGENT EQUIPMENT CO., LTD
SKU: Mesin pengepakan kantong bantal
Price: 7,500.00 USD
Availability: InStock

Rumah > Produk > sistem pengemasan otomatis >

Automatic Vegetables/Fresh Fruit Pillow Bag Packing Machinery

automatic vegetable packing machinery

fresh fruit pillow bag machine

multihead weigher packing machine

Tempat asal:

CINA

Nama merek:

TOUPACK

Sertifikasi:

Nomor model:

Mesin pengepakan kantong bantal

Hubungi Kami

Minta Kutipan

Rincian produk

Nama Produk:

Mesin pengepakan kantong bantal

Fungsi:

Pembungkus, pengemasan

Efisiensi pengemasan:

Kecepatan yang dapat disesuaikan (30-80 paket/menit), kontrol kecepatan konversi frekuensi, operasi

Kemampuan beradaptasi spesifikasi:

Mendukung beberapa spesifikasi kemasan (panjang 50-300mm, dll.), Kompatibel dengan film-film yang ti

Kontrol Otomatis:

PLC (pengontrol logika yang dapat diprogram) + operasi layar sentuh, pemberian makan otomatis, penye

Kualitas penyegelan:

Penyegelan panas zona ganda, segel yang kuat dan kedap udara, permukaan pemotongan datar

Kompatibilitas material:

Cocok untuk makanan/kebutuhan/obat -obatan harian, dll.; 304 stainless steel digunakan untuk bagian

Syarat Pembayaran & Pengiriman

Kuantitas min Order

Kemasan rincian

Kemasan peti kayu

Syarat-syarat pembayaran

L/c, t/t

Menyediakan kemampuan

30 hari

Produk terkait

video

Hubungi Sekarang

Deskripsi Produk

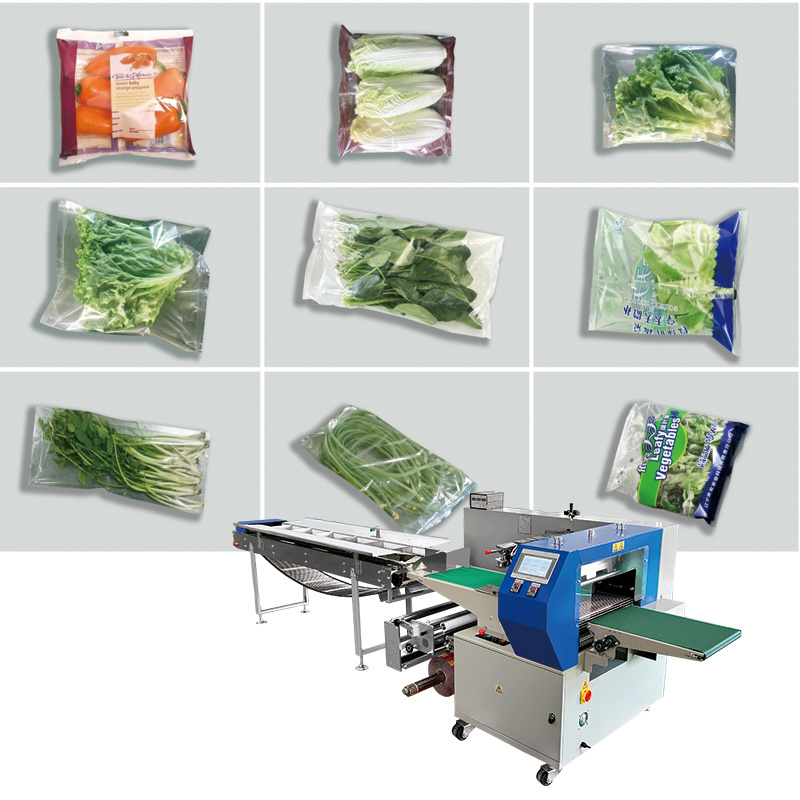

Automatic Vegetables/Fresh Fruit Pillow Bag Packing Machinery

1. Triple servo control enables instant bag length setting and cutting without idle adjustment, achieving precise results in one step to save time and film;

2. High-sensitivity photoelectric colour mark tracking with digital input for sealing position ensures greater accuracy;

3. Integrated temperature control module featuring independent PID regulation delivers precise temperature management, optimally suited for diverse packaging materials;

4. Touchscreen interface facilitates swift and convenient parameter configuration;

5. Self-diagnostic fault function with clear fault display;

6. Position-stop mechanism prevents blade adhesion and film wastage;

7. Simplified mechanical structure ensures reliable operation and straightforward maintenance.

Our high-performancee is designed for noodles, bread, and daily necessities. With fast speed, reliable sealing, and easy operation, it ensures product freshness while improving production efficiency. Versatile and cost-effective, it’s the ideal packaging solution for both food and non-food industries. #packaging solutions #packing machine manufacturer #pillow packing machine #pillow wrapping machine #packing machine manufacturer

Model

TY-600X

TY-800

Film width

Max 600mm

Max 800mm

Bag length

100-6000mm

100-6000mm

Bag width

90-220mm

120-300mm

Product height

10-120mm

10-110mm

Film roll diameter

Max 320mm

Max 320mm

Packaging speed

10-25 bag/min

10-80 bag/min

Power supply

220V, 50/60HZ, 3.0KW

220V, 50/60HZ, 4.1KW

Size

(L)3948X(W)1081X(H)1463mm

(L)4412X(W)1200X(H)1153mm

Weight

650kg

750kg

Tag：

Automatic Vegetables/Fresh Fruit Pillow Bag Packing Machinery

automatic vegetable packing machinery

fresh fruit pillow bag machine

multihead weigher packing machine

Automatic Pillow Bag Packing Machine 30-80 Packs/Min for Food Packaging

Automatic Vegetables/Fresh Fruit Pillow Bag Packing Machinery

Multi Lanes Liquid Paste Stick Sachet Packing Machine Ketchup Mayones 3/4 Side Sealing Filling Machine

Akurasi Tinggi 5g Desiccant Sugar Packing Machine Multi Lane Granule Packing Machine

Sistem Pengemasan Otomatis Bakso

Sistem Pengemasan Otomatis Vertikal

Sistem Pengemasan Otomatis Produk Campuran

Model	TY-600X	TY-800
Film width	Max 600mm	Max 800mm
Bag length	100-6000mm	100-6000mm
Bag width	90-220mm	120-300mm
Product height	10-120mm	10-110mm
Film roll diameter	Max 320mm	Max 320mm
Packaging speed	10-25 bag/min	10-80 bag/min
Power supply	220V, 50/60HZ, 3.0KW	220V, 50/60HZ, 4.1KW
Size	(L)3948X(W)1081X(H)1463mm	(L)4412X(W)1200X(H)1153mm
Weight	650kg	750kg
